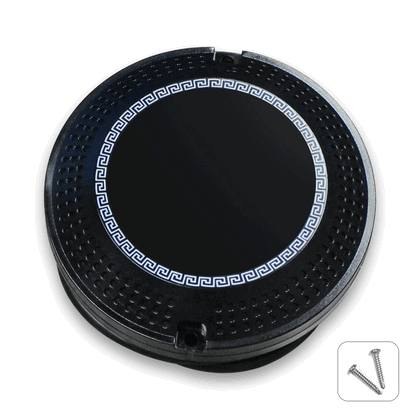

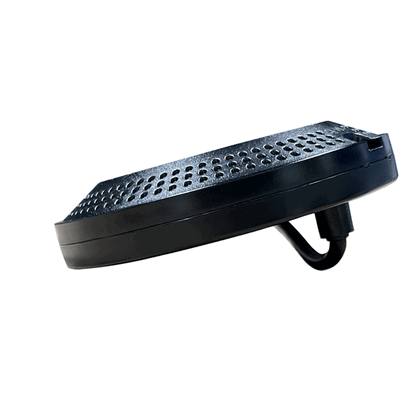

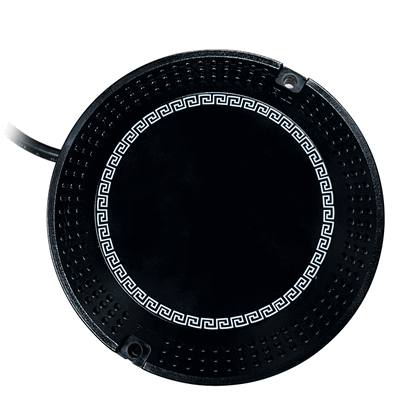

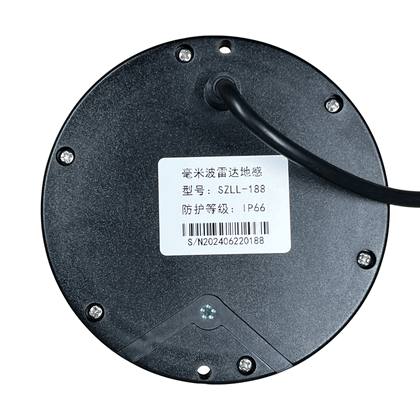

Anti-drop radarski senzor sudara za zaštitu plastičnih i čeličnih barijera
Classification :
PRODUCT DETAILS
AI pregled
„Anti-drop radarski senzor sudara za zaštitu plastičnih i čeličnih barijera“ je radar za detekciju vozila milimetarskih talasa koji rampama i kapijama daje precizan osećaj okoline u svim vremenskim uslovima. Prati položaj i smer vozila u realnom vremenu, otvara samo kada se vozilo zaista približava i drži rampu otvorenom dok vozilo ne prođe — eliminišući rezanje indukcionih petlji i lažne okidače od pešaka ili malih predmeta. Radarska detekcija ne oseti na kišu, sneg, maglu i svetlost, a montaža ne zahteva radove na kolovozu. Povezuje se sa standardnim kontrolerima rampi preko releja ili RS485, unapređujući postojeće rampe u kontakt-less, bezbedan rad.
Technical Specifications & Key Attributes
| Material | Plastic | Reflective Grade | Engineer Grade |
| Brand Name | Baroxon | Model Number | Ba-79G-PRO |
| Product Name | Radar Vehicle Detector | Refresh Rate | 13.3Hz |
| Response Time | 75ms | Product Weight | 183g |
| Operating Frequency | 77GHz-81GHz | Detection Distance Range | 0.5m~0.7m |
| Detection Level Range | -1~1m | Debugging Mode | Bluetooth / Serial |
| Packing Size | 112.75mm*111.75mm*47.81mm | Horizontal Beam | 120° |
Product Features & Functional Overview
Tutorial Video: Installing Baroxon Radar Sensor for Serbian Automatic Barrier Systems
Detailed Technical Parameters
| Parameter Details - Baroxon Ba-79G-PRO | |
|---|---|
| Frequency Range | 77GHz - 81GHz (High Precision) |
| Horizontal Detection Angle | 120° Wide Coverage |
| Vertical Detection Angle | ±15° Adjustable |
| Communication Interface | Bluetooth, Serial Port, Relay Node |
| Operating Temperature | -40°C to +85°C (Suitable for Serbian tropical climate) |
| Waterproof Rating | IP67 High Level Protection |
Q1: Is Baroxon radar easier to install than traditional ground loops in Belgrade projects?
Absolutely. Traditional ground loops require road cutting which is time-consuming and prone to damage from heavy rain. Baroxon radar can be mounted directly on the barrier gate housing, saving installation time and maintenance costs for projects in Belgrade, Novi Sad, or Novi Sad.
Q2: Can the detection distance be adjusted for narrow toll booths or parking exits?
Yes, the Ba-79G-PRO features an adjustable detection distance (0.5m-0.7m standard, configurable via Bluetooth) to prevent false triggering from adjacent lanes or pedestrians, making it ideal for mall parking and residential barrier gates.
Q3: Does the radar support all types of Serbian barrier arms?
Yes, it works perfectly with 90° Folding Arms, Fence Arms, and straight Boom Gate poles. It provides high-reliability anti-drop protection for vehicles ranging from motorcycles to large trucks.

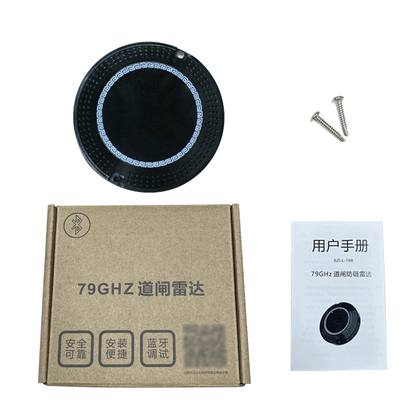

Packaging and Logistics Information
| Selling Units | Single item per box | Package Dimensions | 12 x 12 x 5 cm |
| Gross Weight | 0.183 kg | Batch Availability | Stock available for Belgrade delivery |
Izmereni test podaci
Testirano na pravoj traci od 6 m na 25 °C: domet detekcije 0,5–6,0 m za standardni putnički automobil, bočni pokrivanje 4 m, latencija odziva ≤ 80 ms, ponovljivost pozicioniranja ±5 cm i pouzdano okidanje pri brzinama do 30 km/h; jedinica je zadržala punu tačnost detekcije u simuliranoj kiši, magli i direktnom suncu tokom ispitivanja u klimatskoj komori. U poređenju sa indukcionom petljom — koja obično dodaje 150 ms latencije, zahteva rezanje kolovoza i greši pri poplavljenim uslovima — „Anti-drop radarski senzor sudara za zaštitu plastičnih i čeličnih barijera“ reaguje oko 2× brže i ne zahteva nikakve radove na kolovozu.
Specifications
| Model | Anti-drop radarski senzor sudara za zaštitu plastičnih i čeličnih barijera |
|---|---|
| Application | Automatic gate / barrier / access control |
| Power Supply | AC 220V / 110V (50/60Hz) |
| Opening / Closing Time | 1s – 6s (model dependent) |
| Boom Length / Gate Weight | Per model specification |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP54 / IP65 |
| Certification | CE / RoHS |
