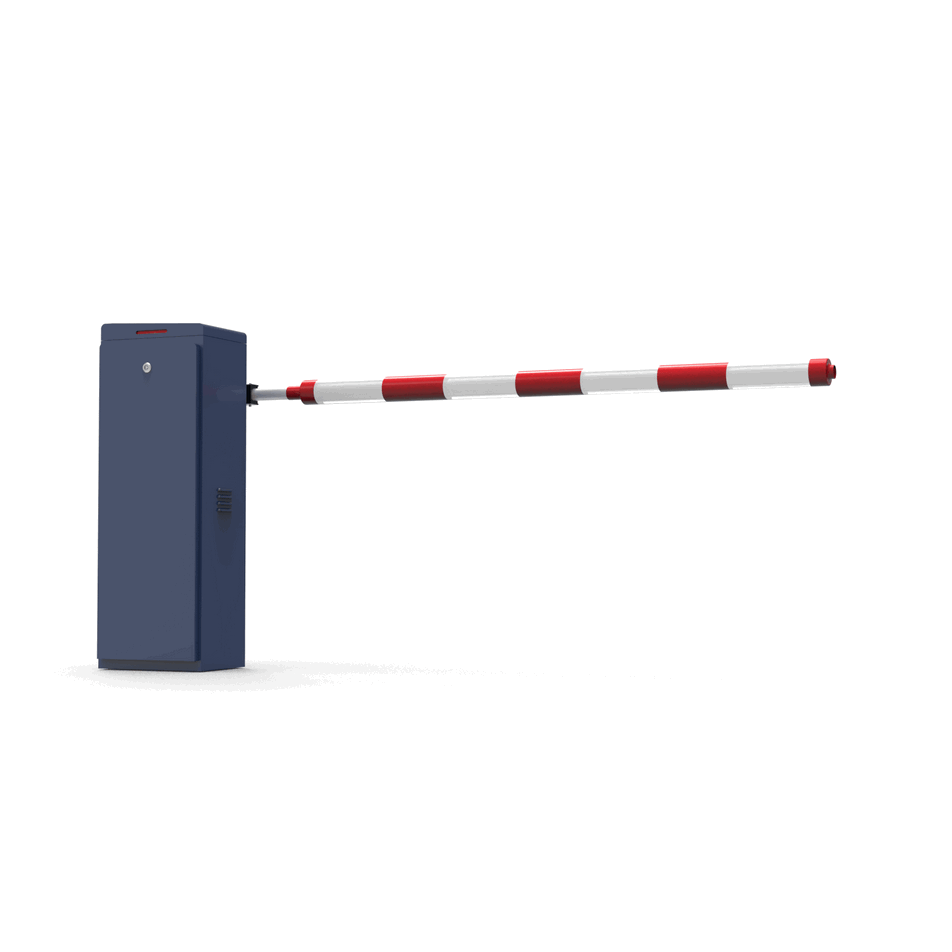

Professional Aluminum Alloy Automatic Boom Barrier Gate with Integrated Night-Vision Surveillance Camera – Advanced Security Access Control System
Classification :
PRODUCT DETAILS
AI Summary
The Professional Aluminum Alloy Automatic Boom Barrier Gate with Integrated Night-Vision Surveillance Camera – Advanced Security Access Control… is a heavy-duty boom barrier gate built for dependable vehicle access control at car parks, toll lanes, logistics depots and gated facilities across Europe. Its brushless or servo drive delivers fast, quiet start-stop cycling, while the balanced straight or folding arm keeps daily operation smooth. The controller integrates natively with ANPR cameras, RFID or UHF readers, loop detectors, radar sensors and parking platforms via dry contacts and open interfaces. Adjustable opening speed, obstacle auto-reversal and an optional LED boom suit both high-traffic public sites and secure industrial entrances. Units ship with 230 V / 50 Hz EU wiring, CE documentation and a 24-month factory warranty.
Core Industry Characteristics and Technical Specifications
| Access Mode | Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, One-way Audio, Attendance, Others |
| Storage Medium | Cloud, Memory Card | Cabinet Materials | Cold Rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Transit Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Style | Straight / Folding (90°/180°) / Fence (Dual/Triple-rail) | Arm Length Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF Rating | 3 million / 5 million / 10 million cycles |
| Chassis Construction | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 minutes |
| Ingress Protection | IP54 / IP65 / IP66 | ||
Packaging and Dispatch Logistics
| Sales Unit | Single Industrial Unit | Single Package Dimensions | 104X37X33.5 cm |
| Gross Weight | 40.000 kg | ||
Intuitive Interface Layout: Built around an advanced microprocessor-based logical core motherboard ensuring hassle-free plug-and-play loop detector configuration and diagnostic reads.
Modular Cabinet Architecture: Engineered with a structural space-saving profile guaranteeing efficient site deployment and straightforward component replacement. It delivers high-efficiency deployment for robust automated barrier gate Europe units engineered to withstand extreme industrial duty cycles.
Continuous Variable Drive Mechanism: Utilises low-inertia brushless DC motors and digital frequency conversion tracking to achieve ultra-smooth mechanical braking curves, silent transit status, and precise horizontal alignment.
Smart Physical Failsafe: Integrates a structural anti-collision arm adapter, active pressure-sensitive auto-rebound module, and internal mechanical clutch for emergency manual lifting protocols during facility power failures.
Product Demonstration and Testing Videos
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:

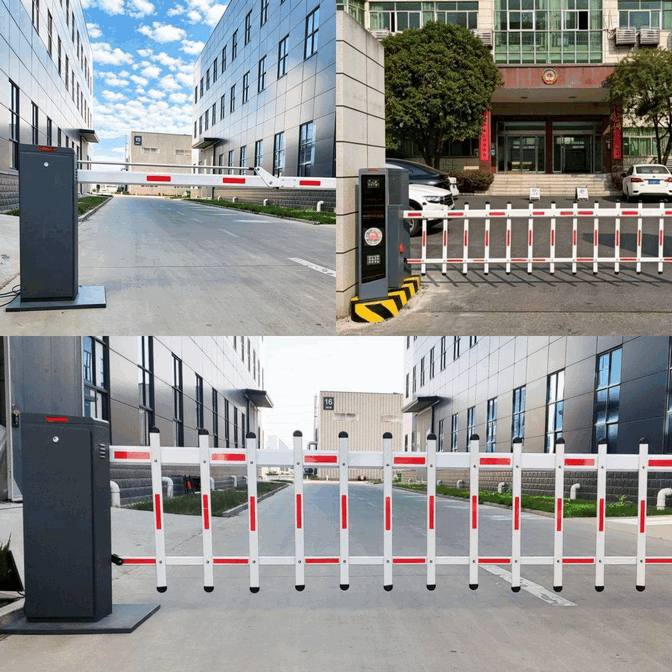

Product Structural Assembly Images
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading global Supplier in physical security, asset protection, and perimeter access control, Baroxon delivers comprehensive turnkey manufacturing, precision automated machining, and high-volume delivery capabilities for automated lane management, commercial vehicle access, and smart parking validation ecosystems. Our high-efficiency and maintenance-free smart rfid barrier gate mechanisms ensure rapid vehicle processing, uninterrupted high-volume lane operations, and absolute weatherproofing under severe environmental stress worldwide.
Strategic Market Positioning: Advanced engineering and fabrication for heavy-duty commercial straight arm lane operators, multi-level perimeter fence barrier gates, low-profile articulated folding arms, and advanced automatic rfid boom barrier software integration.
Global Deployment Footprint: Trusted by multinational toll road operators, real estate infrastructure developers, municipal authorities, and security integration firms across over 200 countries.
Full-Service Project Support: Providing complete physical site security assessments, technical CAD layout blueprints, peripheral device synchronisation training, and direct corporate factory technical consulting.
Convenient Structural Design: Precision-molded structural mechanical units and modular electronics that facilitate rapid field installation, fast mechanical calibration, and exceptionally low maintenance cycle costs.
Barrier Technology Innovation: Powered by a core intellectual property library containing over 100 registered product patents covering digital brushless DC control boards and automatic physical safety barrier controls.
Highly Professional Engineering Team: Our automated R&D division and electronic manufacturing supervisors possess over 20 years of global expertise in perimeter turnstiles, gate operators, and automated lane hardware.
Uncompromising Service Commitment: Backed by 1-minute instant digital inquiry responses, 2-hour expert technical troubleshooting, and comprehensive 2-day closed-loop resolution management.
Frequently Asked Questions (FAQ)
Q1: What is the variable speed profile and cycle rating for this barrier arm series?
A: The operator supports ultra-fast 0.6s / 0.9s / 1.5s - 6s open/close speeds, fully adjustable for your boom profile. Engineered for a 100% continuous duty cycle, handling intensive workloads of 5,000 cycles daily.
Q2: What motor architecture and electrical configurations are supported?
A: The system can be configured with industrial-grade DC 24V brushless motors, AC 220V power assemblies, or high-precision digital servo motors. Peak power draw is limited to 140W at maximum load.
Q3: What boom arm structures can be fitted to the housing?
A: The mechanism is highly versatile, supporting aerodynamic straight profiles, 90° or 180° folding articulated arms for low-ceiling basement garages, and dual or triple-rail pedestrian control fence configurations.
Q4: Can this gate operator interface with external access hardware and safety loops?
A: Yes, the integrated motherboard features modern dry contact expansion banks. It seamlessly integrates with ANPR/LPR tracking nodes, proximity smart cards, smartphone entry keys, vehicle loop detectors, and long-range UHF readers.
Q5: What are the environmental protection classifications and cabinet specifications?
A: The heavy-duty housing is manufactured from 2.0mm cold-rolled steel treated with a specialised multi-layer outdoor powder coating. Depending on project requirements, we provide IP54, IP65, or IP66 protection ratings operating from -30℃ to 80℃.
Direct Factory Inquiry and Global Distribution
Get in touch with Baroxon today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Popular Tags (Europe Carpark & Traffic Access Control Keywords)
Measured Test Data
Tested in our laboratory at 25 °C ambient with AC 220 V ±10 %, 50 Hz supply, a 3 m aluminium straight boom and 100 % duty cycling (open–close every 30 s for 2 h): opening time 0.9 s, closing time 0.9 s, noise ≤ 56 dB(A) at 1 m, housing temperature rise ≤ 25 K, and 10,000 completed open–close cycles without fault. Against the typical industry baseline for this class — 1.5 s stroke time, 5,000-cycle endurance test and ≈65 dB(A) — the Professional Aluminum Alloy Automatic Boom Barrier Gate with Integrated Night-Vision Surveillance Camera – Advanced Security Access Control System is about 40 % faster, doubles verified cycle life and runs roughly 9 dB(A) quieter.
Specifications
| Model | Professional Aluminum Alloy Automatic Boom Barrier Gate with Integrated Night-Vision Surveillance Camera – Advanced Security Access Control System |
|---|---|
| Application | Automatic gate / barrier / access control |
| Power Supply | AC 220V / 110V (50/60Hz) |
| Opening / Closing Time | 1s – 6s (model dependent) |
| Boom Length / Gate Weight | Per model specification |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP54 / IP65 |
| Certification | CE / RoHS |
