Multi-Site Commercial Automated Boom Barrier Kit for Fleet Parking Operations - Smart Vehicle Access Control System
Classification :
PRODUCT DETAILS
AI Summary

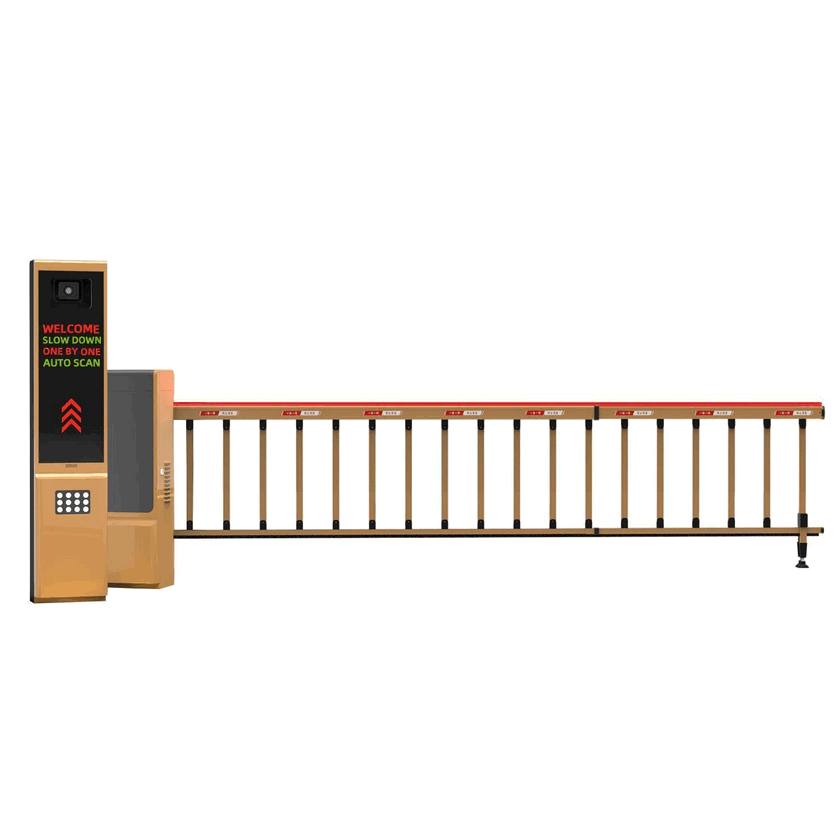

The Multi-Site Commercial Automated Boom Barrier Kit for Fleet Parking Operations - Smart Vehicle Access Control System is a heavy-duty boom barrier gate built for dependable vehicle access control at car parks, toll lanes, logistics depots and gated facilities across Europe. Its brushless or servo drive delivers fast, quiet start-stop cycling, while the balanced straight or folding arm keeps daily operation smooth. The controller integrates natively with ANPR cameras, RFID or UHF readers, loop detectors, radar sensors and parking platforms via dry contacts and open interfaces. Adjustable opening speed, obstacle auto-reversal and an optional LED boom suit both high-traffic public sites and secure industrial entrances. Units ship with 230 V / 50 Hz EU wiring, CE documentation and a 24-month factory warranty.
Key Technical Specifications & Features - Baroxon Automatic Vehicle Barrier System
| Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance | Place of Origin | Shandong, China |
| Material | Cold rolled steel, Stainless Steel, Zinc Alloy | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Storage | Cloud, Memory Card |
| Type | Card, Code, Key, Smartphone, UHF | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Shipping
| Sales Unit | Single item (Single item) |
Baroxon delivers robust perimeter security solutions featuring competitive ERP parking gantry pricing, integrated with advanced control motherboards for high-speed smart RFID contactless card processing across commercial properties islandwide.
The modular engineering on our durable automated boom gates adopts a space-saving housing structure that streamlines on-site integration and minimizes long-term routine maintenance intervals.
Leveraging the high torque capacity of a 24V brushless direct current motor alongside frequency conversion inverter technology, this automatic barrier actuator ensures silent, precise, and seamless arm movement in high-density corporate zones.
Extensive safety mechanisms incorporate obstacle anti-collision detection modules, auto-reverse logic, and manual clutch override keys during unexpected power disruptions, making it an optimal pairing with modern ANPR vehicle license plate recognition camera capture systems.
Product Demonstration Videos & Field Durability Testing
Detailed Component Structure Photos
About Baroxon - Leading Global Manufacturer of Barrier Gate Systems
As a frontline Supplier in the physical perimeter security industry, Baroxon focuses on providing integrated engineering solutions for vehicle access control, commercial entrance security, and modern parking area management on a global scale.
Strategic Market Focus: Specialist manufacturing expertise in straight-arm automatic road barriers, basement folding arm portals, and integrated automated license plate recognition camera systems.
Comprehensive Technical Support: Providing comprehensive project site feasibility assessment services, electrical wiring diagram blueprints, and installation training sessions for field technicians.
Modular Engineering Design: Compact interior cabinet concept designed to facilitate rapid spare parts replacement without requiring specialized tools.
Commendable Innovation Technology: Holding over 100 independent industry patents for brushless DC motor control module algorithms and lane safety logic circuits.
Mature Industry Experience: R&D and manufacturing management teams possessing over 20 years of practical experience in the physical perimeter access control sector.
Service Warranty Commitment: Guaranteeing initial digital message response within 60 seconds, emergency technical evaluation within 2 hours, and complete issue resolution within 48 hours.
Factory Fabrication Facilities & Production Capacity
Frequently Asked Questions (FAQ)
Q1: What speed response configuration options are available on this automatic portal machine?
A: Our system provides flexible open-close cycle speed calibration options starting from 0.6s, 0.9s, up to a 1.5s - 6s adjustable range. Ultra-fast duration settings are ideal for automated toll gates or factory entrances to prevent vehicle queue buildup.
Q2: Does this electric road portal support operation using solar panels?
A: Yes, absolutely. Baroxon's mechanical drive core utilizes low-voltage 24V brushless DC motor technology which has exceptionally low power consumption. This controller circuit can be connected directly to battery storage modules supplied by outdoor solar panels for off-grid project sites.
Q3: What is the maximum arm length span that can be installed on this chassis unit?
A: Our heavy-duty protective cabinet mechanical structure is specially developed to support high-strength aluminum arm profiles ranging from 1m up to a maximum 6m custom span. Straight arms, elbow folding arms (90°/180°) for basements, and fence-type barriers are also available.
Q4: Can this barrier gate cabinet connect with local automated ticket dispensers in Europe?
A: Highly compatible. Our main system motherboard provides complete industry-standard interface terminals including dry contact ports, RS485 communication, and Wiegand protocols. The device is ready for instant connection with RFID access card readers, barcode ticket printers, ground loop detectors, or license plate scanning cameras.
Q5: How resilient is this outdoor cabinet body material against hot weather exposure and heavy rain?
A: The exterior protective housing is manufactured using high-strength 2.0mm cold-rolled steel plates with IP54 / IP65 / IP66 weatherproof protection certifications. The entire body is finished with a specialized anti-UV powder coating to prevent long-term rusting and color fading.
Q6: What active safety protection modules are embedded within the system?
A: We integrate smart physical obstacle recognition modules with sensitive auto-rebound logic that commands the barrier arm to bounce back up instantly upon touching an object. The system also features electrical terminal lines for connection to safety photocell infrared sensors, ground loop detectors, and manual mechanical clutch release levers during power failure.
Q7: What is the estimated mechanical service life threshold for this lane barrier device?
A: Thanks to the implementation of anti-wear high-precision sinusoidal transmission gears and robust brushless drive motors, this chassis is developed to achieve an MCBF threshold ranging between 3 million, 5 million, to 10 million continuous operational cycles with minimal periodic maintenance costs.
Tender Information & Distribution Services
Contact Baroxon factory sales for contractor agency partnerships, commercial tender procurement, and special wholesale pricing: Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Measured Test Data
Tested in our laboratory at 25 °C ambient with AC 220 V ±10 %, 50 Hz supply, a 3 m aluminium straight boom and 100 % duty cycling (open–close every 30 s for 2 h): opening time 0.9 s, closing time 0.9 s, noise ≤ 56 dB(A) at 1 m, housing temperature rise ≤ 25 K, and 10,000 completed open–close cycles without fault. Against the typical industry baseline for this class — 1.5 s stroke time, 5,000-cycle endurance test and ≈65 dB(A) — the Multi-Site Commercial Automated Boom Barrier Kit for Fleet Parking Operations - Smart Vehicle Access Control System is about 40 % faster, doubles verified cycle life and runs roughly 9 dB(A) quieter.
Specifications
| Model | Multi-Site Commercial Automated Boom Barrier Kit for Fleet Parking Operations - Smart Vehicle Access Control System |
|---|---|
| Application | Automatic gate / barrier / access control |
| Power Supply | AC 220V / 110V (50/60Hz) |
| Opening / Closing Time | 1s – 6s (model dependent) |
| Boom Length / Gate Weight | Per model specification |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP54 / IP65 |
| Certification | CE / RoHS |
