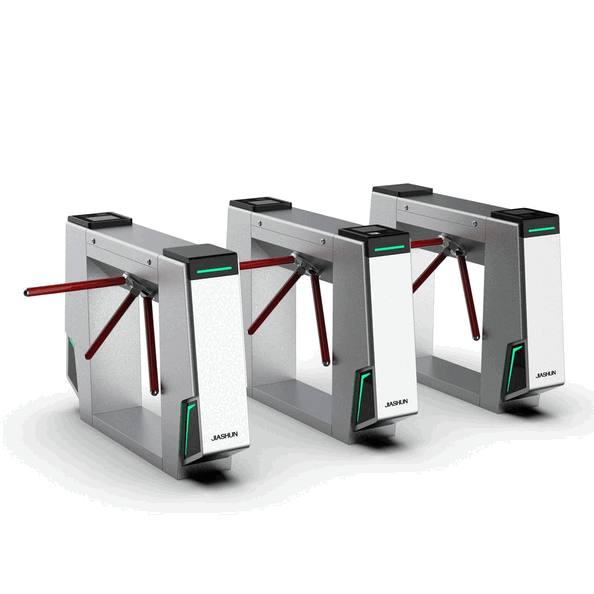

IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security Barrier Solution
Classification :
PRODUCT DETAILS
AI Summary
The IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security Barrier Solutio… is an automatic pedestrian turnstile that channels visitors through controlled, one-at-a-time passages. Brushless or servo mechanisms provide quiet, precise rotation, while the controller accepts credentials from RFID, QR, face recognition, fingerprint or ticketing systems. Safety features — infrared anti-pinch arrays, smooth slow-down and free rotation on power failure — protect every user. Stainless steel housings and modular lanes let integrators scale from single entrances to full lobbies in offices, metro stations, stadiums and factories. Combined with visitor management or ANPR at vehicle gates, it completes a site-wide access control chain.
Key Attributes - Baroxon Heavy Duty Tripod Turnstile Europe
| Protection Level | IP68 (Waterproof & Dustproof) | Barrier Open/Close Time | 0.2 s |
| Barrier Motor | Brushed Motor | Access Control Type | RFID Card. QR Code. IC Card. ESD System (Anti-Static) |
| Turnstile Function | Anti-Pinch. Collision Avoidance. Anti-Tailgating. Counting Function | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP (Network Integration) | Material | SUS304 Stainless Steel |
| Brand Name | Baroxon | Model Number | Ba-G107 |
| Dimensions | 1200*280*980mm | Power Supply | AC 220 ± 10% V. 50 Hz |
| Drive Motor | DC Motor 24V/100W | Operating Temperature | -15°C to 60°C |
| Relative Humidity | ≤ 90%. non-condensing | Case Color | Metallic silver/customizable |
| Gate Arm Length | 510(mm) | Max Load Capacity | 80Kg |
Key Features of Baroxon Ba-G107 for European Industrial Sites
1. Silent Operation: Runs smoothly without noise and mechanical impact, perfect for high-end office environments in Metro regional European cities.
2. Emergency Security (Drop Arm): During power outages, the arm drops automatically for emergency evacuation (Automatic Emergency Function).
3. Flexible Control: Can be set to bi-directional or single-directional for efficient Pedestrian Access Control management.
4. All-Weather Durability: IP68 protection rating suitable for both indoor and outdoor applications, resistant to heavy rain and dust.
5. High Compatibility: Standard interface integrates with Facial Recognition, ID/IC, UHF, and Fingerprint readers for Smart Attendance Systems.
6. Universal Integration: Equipped with standard dry contact signal interfaces for all types of access control panels.
7. Visual Guidance: Equipped with LED directional indicators and status lights for clear pedestrian navigation.
8. High Security: Positive action lock prevents multiple entries simultaneously (Anti-Tailgating).
9. Modular Design: Easy assembly for installation in limited routes and quick maintenance services.
Technical Parameters - Detailed Specifications
| Structural Parameters | |
| Casing Material | 304 Grade Stainless Steel (Anti-Corrosion) |
| Surface Treatment | Brushed Finish (Elegant Aesthetic) |
| Technical Parameters | |
| Lane Width | 600mm |
| Pass Speed | 45--50 persons/minute |
| Open/Close Speed | 0.5sec |
| Rotation Angle | 120 degrees |
| MCBF (Service Life) | 10,000,000 cycles |
| Weight | 30kg |
| Electronic Parameters | |
| Power Supply | 220V/AC. 50/60HZ |
| Rated Power | 60W |
| Input Signal | Dry Contact |
| Drive Motor | Solenoid / DC Motor |
Application Locations in Europe
Watch the smooth operation of Baroxon Ba-G107 Tripod Turnstile with QR Code Reader at a local project site:
FAQ - Baroxon Europe Customer Support
| 1. Does Ba-G107 support integration with local ESD systems for factories? |
| Yes, our systems are fully compatible with ESD (Electrostatic Discharge) access control, ideal for electronic manufacturing in major metropolitan areas or. |
| 2. Is the IP68 rating reliable for outdoor use during heavy rain? |
| Absolutely. Baroxon Ba-G107 is built with high-level seals to ensure stable performance during the European rainy season. |
| 3. What happens in the event of a power failure in the building? |
| The gate arm drops automatically (Auto-Drop Arm) to ensure a free passage for safety compliance (Occupational Safety Standards). |
Measured Test Data
Tested at 25 °C with standard credential cards: passage throughput 35 persons/min per lane, single-cycle rotation time 0.8 s, noise ≤ 52 dB(A) at 1 m, anti-pinch response ≤ 100 ms on the infrared array, and 5,000,000 (5 M) mechanism cycles rated by accelerated life testing with 1,000,000 cycles verified on our endurance rig. Against the typical industry baseline — 25–30 persons/min, 1.2 s rotation and 3 M rated cycles — the IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security Barrier Solution passes about 20 % more people per minute, rotates 33 % faster and roughly doubles the endurance margin.
Specifications
| Model | IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security Barrier Solution |
|---|---|
| Application | Automatic gate / barrier / access control |
| Power Supply | AC 220V / 110V (50/60Hz) |
| Opening / Closing Time | 1s – 6s (model dependent) |
| Boom Length / Gate Weight | Per model specification |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP54 / IP65 |
| Certification | CE / RoHS |
