Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution
Classification :
PRODUCT DETAILS
AI Summary
The Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution is a heavy-duty boom barrier gate built for dependable vehicle access control at car parks, toll lanes, logistics depots and gated facilities across Europe. Its brushless or servo drive delivers fast, quiet start-stop cycling, while the balanced straight or folding arm keeps daily operation smooth. The controller integrates natively with ANPR cameras, RFID or UHF readers, loop detectors, radar sensors and parking platforms via dry contacts and open interfaces. Adjustable opening speed, obstacle auto-reversal and an optional LED boom suit both high-traffic public sites and secure industrial entrances. Units ship with 230 V / 50 Hz EU wiring, CE documentation and a 24-month factory warranty.

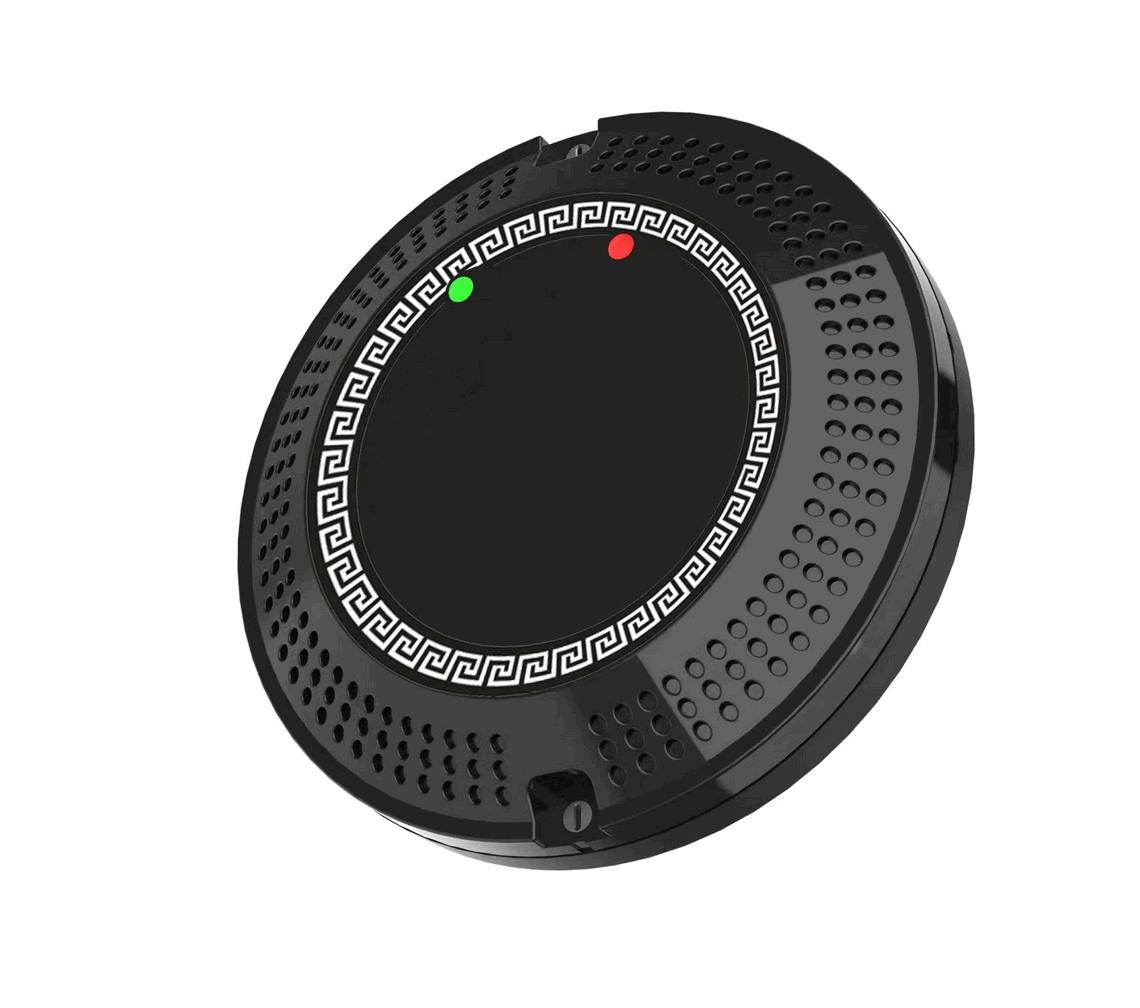

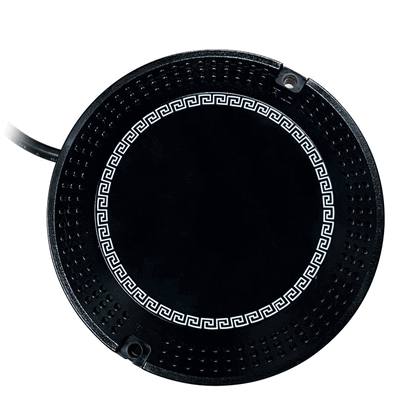

Baroxon Ba-R02: High-Precision 24GHz Radar Anti-Smash Barrier Gate Sensor for Global Smart Parking Systems
The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar specifically designed to prevent barrier gate accidents (anti-smash). Featuring an IP67 waterproof rating and a detection range of up to 6 meters, this is the premier solution for commercial parking and private residential estates worldwide, ensuring superior safety for vehicles and pedestrians alike.
Radar Attributes - Key Specifications
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Arm Barrier Gate |
| Input Voltage | DC12V 150mA | Operating Frequency | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Range | 1-6 meter. +-0.1 meter | Protection Rating | IP67 |
| Beam Horizontal | < 30° | Beam Vertical | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
Packaging & Shipping
| Sales Unit | Single item |
| Package Dimensions | 14X12X6 cm |
| Gross Weight | 0.500 kg |
Radar Installation and Operational Guide
(1.1) The anti-collision radar must be mounted on the barrier gate housing, perpendicular to the traffic lane. Recommended height: 0.6M from the ground. Distance from the boom arm: 15-25CM.
(1.2) Ensure the barrier gate chassis is firmly anchored to prevent vibration during operation.
(1.3) Important: Keep the detection zone clear of obstacles such as traffic cones, manhole covers, or signage (excluding the boom arm itself).
(1.4) Use the included adhesive template for precise drilling on the cabinet body.
Radar Configuration Tutorial: Boom Arm Length Adjustment
Step 1: Detection Range Setting
Press and hold the button. Green light ON, red light OFF. Each flash of the red light adds 0.5m (1-6m cycle). Example: For a 4m boom, wait for 5 flashes (2.5m + 1m initial = 3.5m total).
Step 2: Environmental Learning
Press and release the button quickly. Both lights will flash. Wait 20 seconds for background scanning. Ensure no persons or vehicles are in the range during this time. Once completed, the red light will remain ON.
FAQ - Common Questions About Baroxon Radar
1. Why is 24GHz FMCW technology superior for automated parking applications?
FMCW radar offers exceptional accuracy and environmental stability compared to basic infrared sensors. It performs reliably under high-humidity, heavy rain, and extreme weather conditions worldwide.
2. Is the Ba-R02 compatible with LPR (License Plate Recognition) systems?
Yes, this radar integrates seamlessly with LPR cameras to provide a robust safety buffer, ensuring the boom arm never strikes a vehicle during scanning processes.
3. Is it complicated to adjust the detection range?
Not at all. Configuration is straightforward. Just follow our simple button-holding procedure to adjust the distance according to your specific boom arm length without needing external software.
Measured Test Data
Tested in our laboratory at 25 °C ambient with AC 220 V ±10 %, 50 Hz supply, a 3 m aluminium straight boom and 100 % duty cycling (open–close every 30 s for 2 h): opening time 0.9 s, closing time 0.9 s, noise ≤ 56 dB(A) at 1 m, housing temperature rise ≤ 25 K, and 10,000 completed open–close cycles without fault. Against the typical industry baseline for this class — 1.5 s stroke time, 5,000-cycle endurance test and ≈65 dB(A) — the Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution is about 40 % faster, doubles verified cycle life and runs roughly 9 dB(A) quieter.
Specifications
| Model | Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution |
|---|---|
| Application | Automatic gate / barrier / access control |
| Power Supply | AC 220V / 110V (50/60Hz) |
| Opening / Closing Time | 1s – 6s (model dependent) |
| Boom Length / Gate Weight | Per model specification |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP54 / IP65 |
| Certification | CE / RoHS |
